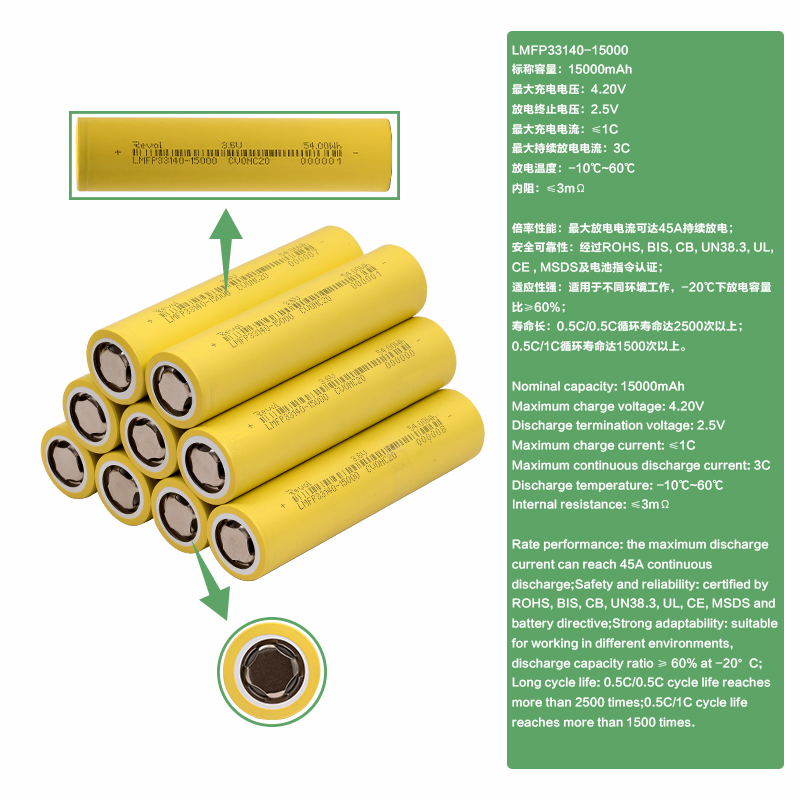

Parameter information
Nominal capacity: 15000mAh
Maximum charging voltage: 4.20V
Discharge cut-off voltage: 2.5V
Maximum charging current: ≤1C
Maximum continuous discharge current: 3C
Discharge temperature: -10℃~60℃
Internal resistance: ≤3mΩ
Product Features
Item | Specification |
Rate performance | the maximum discharge current can reach 45A continuous discharge. |
Safety and reliability | certified by RoHS, BIS, CB, UN38.3, UL, CE, MSDS and battery directive certification. |
Strong adaptability | suitable for working in different environments, discharge capacity ratio ≥60% at -20°C. |
Long cycle life | 0.5C/0.5C cycle life reaches more than 2500 times; 0.5C/1C cycle life reaches more than 1500 times. |
Chemical stability: LMFP33140 Battery Cells are known for their high chemical stability, which means they are safer under extreme conditions such as high temperature or overcharging.
Long cycle life: LMFP33140 Battery Cells generally have a longer cycle life than other types of lithium-ion batteries, which makes them ideal for applications that require long-term reliable operation.
Environmental adaptability: LMFP33140 Battery Cells maintain good performance over a wide range of temperatures, which makes them suitable for use in various climates.
Low maintenance requirements: Due to the stability and durability of LMFP33140 Battery Cells, they generally require less maintenance.
Safety: LMFP33140 Battery Cells are at a lower risk of thermal runaway, making them safer.
Energy density: Although the energy density of LMFP33140 Battery Cells may be slightly lower than other lithium-ion technologies, stable performance and long life may be more important in some applications.
Storage
Store the battery at low temperature (below 25°C is recommended), low humidity, no dust and no corrosive gas atmosphere.
Applications
Electric Vehicles (EVs) – Battery packs for scooters, e-bikes, and small EVs.
Energy Storage Systems (ESS) – Solar home storage, backup power, and renewable energy solutions.
Power Tools – Cordless drills, saws, and other heavy-duty battery-powered tools.
Industrial Equipment – Robotics, automated machinery, and portable industrial devices.
Medical Equipment – Large-capacity portable medical monitoring and emergency devices.
Frequently Asked Questions (FAQs)
Q1: Can this battery be used in EV battery packs?
A: Yes, the 15000mAh LMFP battery is ideal for modular EV packs with proper BMS integration.
Q2: How long does it last under normal usage?
A: Typically, 15000mAh provides extended runtime for energy storage and high-power tools, depending on device consumption.
Q3: How safe is LMFP compared to traditional LFP?
A: LMFP maintains the high safety of LFP but offers higher energy density, allowing smaller and lighter battery packs.
Q4: Can it be charged quickly?
A: Safe charging rate is 0.5C–1C. Higher rates are possible if the battery system supports proper thermal management.
Q5: What is the difference between LMFP and NCM batteries?
A: LMFP emphasizes safety, thermal stability, and cycle life, with slightly lower voltage than NCM, but better for large-scale and high-capacity applications.
Whether an OEM/ODM Solution is required?
Our company has designed and developed battery cells and battery module products, covering multiple fields such as power, electric tools, digital appliances, energy storage, etc., with multiple advantages such as high safety and reliability, high energy density, long cycle life, and high cost-effectiveness.
